Orthopaedic tissue engineering: from laboratory to the clinic

Barry W Oakes
Med J Aust 2004; 180 (5): S35. || doi: 10.5694/j.1326-5377.2004.tb05912.x
Published online: 1 March 2004

Abstract

  • Tissue engineering involves the use of cells (either adult, mesenchymal or embryonic stem cells) coupled with biological or artificial matrices or scaffolds which guide the cells during repair or regeneration of the tissue.

  • Recently discovered and isolated growth factors can promote either adult or stem-cell growth and differentiation along selected pathways to re-form and repair skeletal tissues in adults.

  • Bone repair enhancement and replacement is now possible with the use of tissue-engineering technologies.

  • It is now possible to repair articular cartilage using the patient’s own articular chondrocytes retrieved during arthroscopy, and expanded in vitro. Clinical results of this technique are very satisfactory.

In the past decade, much has been learnt about the regeneration and repair of skeletal tissues. Regeneration involves slow replacement of tissues with identical tissue. It occurs readily in the embryo, hardly at all in neonates, and is never observed in adults. This may be because of the relatively high proportion of undifferentiated progenitor cells found in embryos and their scarcity in adults (1 in 10 000 mesenchymal cells in a newborn compared with 1 in 2 ×106 mesenchymal cells in an 80-year-old adult).1 In contrast, repair is a more rapid process and is probably designed for survival. It involves the usual inflammatory cell cascade, followed by matrix deposition and then a remodelling process which attempts, in part, to regenerate damaged tissues in the adult. A now extensive knowledge base of both repair and regeneration in “orthopaedic tissues” has enabled the development of orthopaedic tissue engineering.

Tissue engineering involves the use of cells coupled with biological or artificial matrices, or “scaffolds”, which guide the cells during tissue repair or regeneration. These cells can be “driven” by specific bioactive molecules, ex-vivo gene transfer and other physical factors to form neotissues in vitro for future reimplantation in vivo. Alternatively, the cells and special matrices, which can include bioactive molecules such as growth factors, can be combined in vivo to attempt to enhance tissue repair. An example is human articular cartilage repair using the patient’s own autologous chondrocytes retrieved at arthroscopy. These are expanded in vitro before reimplanting them into full-thickness articular cartilage defects covered with a sutured and fibrin-glued periosteal patch. Such articular cartilage repair has been shown to be clinically effective and durable up to 7 years.2

Here I will cover recent applications of tissue engineering to the repair of components of the knee joint, and compare this repair with normal tissues. I will also briefly address how tissue-engineering concepts have enhanced orthopaedic repair outcomes.

I will not describe the use of gene technology, as, to date, none of this technology has been applied in humans. However, there are many examples of the exciting use of genetic engineering in enhancing orthopaedic tissue repair in animals. Also, I will not discuss the use of embryonic stem cells.

Bone repair

In recent years the isolation of growth factors such as transforming growth factor-β3 and its analogues, such as the bone morphogenic proteins (BMPs) BMP-24 and BMP-7 (OP-1),5 has led to their being used clinically to enhance and accelerate bone repair, and also to replace bone. Bone induction to assist and enhance bone deposition and repair was first introduced by Marshall Urist in 1965,6 and led to the isolation of the BMPs, which could stimulate osteogenic precursor mesenchymal stem cells (MSCs) to form bone. Human cDNA BMP-7 (OP-1) was cloned in 1990. Recombinant human OP-1 (rhOP-1)7 followed, and was shown to induce bone formation in animals by stimulating osteogenic precursor MSCs.

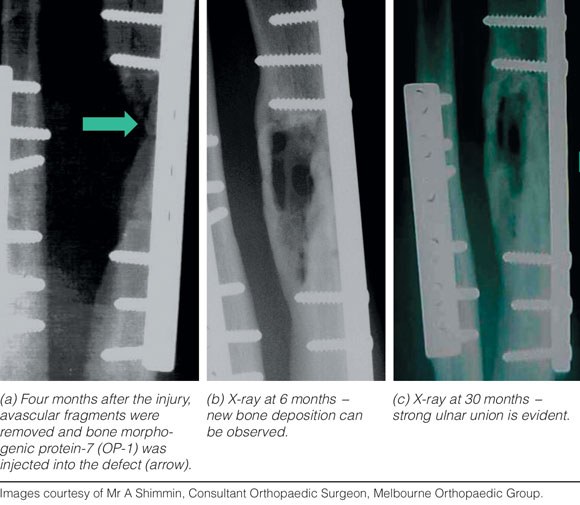

In 2002, it was shown that injecting recombinant human OP-1 into a bone non-union site resulted in healing of the non-union after 30 months.8 OP-1 acts by recruiting adult osteogenic precursor MSCs to repair the bone defects (Box 1). In an Australian study of 163 consecutive patients, including 113 patients with long bone fracture and in whom non-union occurred, OP-1 was used at a mean of 23.2 months after injury, with a follow-up of 19 months. Clinical bone union was achieved in 70% of patients, and radiological bone union in 65%; 35% of these patients had previous failed bone autografts. No significant adverse reactions were attributed to the OP-1 implant. There was also a decreased incidence of osteomyelitis at the surgical site, and bone donor site pain was eliminated, as reflected in decreased use of postoperative analgesia.8

Intraoperative adult stem cell-based technologies are being developed to enhance repair of bone, especially in patients with delayed fractures or non-union of fractures.9,10 The basis of this work is that about 1 in 23 000 cells of adult bone marrow are osteogenic precursor cells. These cells can be separated from other adult haemopoietic stem cells by selective cell adsorption. This can be done in the operating theatre, making viable cell implants immediately available for surgical use. In theory, the use of adult osteogenic precursor stem cells in adequate numbers, combined with a suitable scaffold or matrix, may be better than using a conventional bone autograft. This is because the transplanted osteogenic stem cells can immediately begin to proliferate and lay down a bone neomatrix without the necessity of removing the “old matrix” present in conventional bone autografts. The use of an established canine spinal fusion model has partially confirmed the above hypothesis of the efficacy of an enriched bone matrix composite graft plus an enriched cellular composite.10 Such cell-based technologies may result in decreased use of conventional bone banks, which use “dead” bone to induce new bone formation in patients with loss of normal bone volume.

Bone replacement

Researchers have recently replaced an avulsed thumb distal phalanx with a tissue-engineered bone construct.11 The avulsion resulted from a traumatic injury involving both dorsal thumb skin and the whole of the distal phalanx of the thumb. The dorsal thumb skin was reconstructed using a pedicular abdominal flap. The distal phalanx was replaced with autologous osteogenic precursor cells (that had been harvested from the distal radius periosteum during abdominal flap severance) and expanded in vitro for 9 weeks. At 10 months after the cell implant, only 5% of the implant was new bone, and at 28 months there was some proximal subluxation of the distal phalangeal implant.

This was the first clinical attempt at such whole-bone tissue engineering, and initially appears to have succeeded. The results are very encouraging, but there are no recent follow-up data as to how the patient’s new thumb is performing.

Articular cartilage repair

Articular cartilage is a unique avascular, aneural and alymphatic load-bearing live tissue which is supported by the underlying subchondral bone plate. It is unique in that the extracellular matrix is composed of a complex combination of type II collagen fibrils which are specifically arranged and have bonded to them very large water-retaining molecules called aggrecan molecules. This combination of molecules gives articular cartilage its unique ability to resist the repetitive compressive load-bearing necessary for the activities of daily life without undergoing premature wear.

Articular cartilage damage is common and does not normally self-repair. Often, young athletes and other patients are left with defects over 1 cm in diameter, experience symptoms and seek pain relief. Tissue engineering (autologous chondrocyte implantation [ACI]; see Box 2 and Box 3) has been used to demonstrate the possibility of repairing symptomatic full thickness hyaline articular cartilage defects in the knee joint and, more recently, in the ankle joint.2,15 In 100 patients with full-thickness, large (1.5–12.0 cm2) chondral defects,2 good to excellent results were found in the isolated femoral condyle (92%), multiple lesions (67%), osteochondritis dissecans (89%), patella (65%) and femoral condyle with ACL repair (75%). Second-look arthroscopy in 53 patients showed good tissue fill, good adherence to the subchondral bone and seamless integration with adjacent cartilage, and an arthroscopic indentation hardness close to that of normal cartilage. Histological analysis of 37 biopsy specimens showed a correlation between hyaline-like tissue and good to excellent clinical results. Complications were minimal, with graft failure of less than 10% and symptomatic graft hypertrophy in about 7%.2

In Australia, this technology was first used in Melbourne with encouraging results in 16 patients reviewed at 9 months after autologous chondrocyte transplantation, showing reduction of pain and improved function.16

Similar excellent clinical results have also recently been reported from Melbourne for both knee-joint and talar dome lesions. In the knee study, 57 patients with 81 chondral knee lesions were followed up with both clinical subjective evaluation and magnetic resonance imaging as well as second-look arthroscopy and core-needle biopsy at 12 months. Significant improvement from before the procedure to 12 months after the procedure was found in both subjective and knee-function scores. Core-needle biopsies showed that 70% of lesions were hyaline or hyaline-like cartilage, with a “seamless” interface with the normal adjacent cartilage.17

In Perth the efficacy of cartilage tissue engineering for repair of articular cartilage defects has also been confirmed.18

There are other technologies that have been used to repair articular cartilage, such as microfracture of the subchondral bone plate and also mosaicplasty (where osteochondral plugs are removed from normal cartilage and press-fitted into areas where there is full-thickness, symptomatic loss of articular cartilage). Findings of recent well-designed studies suggest that both techniques are less efficacious than autologous chondrocyte implantation.19,20

Meniscus repair and replacement

Knee-joint meniscal tissue engineering is just commencing, as it is now widely understood that the knee joint menisci play a very important role in load-sparing and sharing, thus protecting the underlying femoral and tibial articular cartilage. Complete and partial meniscal loss caused by traumatic damage is well known to lead to premature articular chondrocyte cell death and osteoarthritis, probably as a result of repeated impact overloading. Hence, the replacement and repair of knee-joint menisci is now recognised as being vital for long-term articular chondrocyte health. Long-term studies of meniscal allografting have been encouraging in terms of tibio-femoral pain relief. Recent conclusions and recommendations for arthroscopic allograft meniscal transplantation is that the technique is realistic, causes minimal morbidity and should be reserved for selected symptomatic young patients. The long-term failure rates are not defined, but all will probably fail with time. In a study using 40 cryopreserved allografts, an overall failure rate of 22% at 7-year follow-up has been reported.21,22 Recently, a collagen meniscal implant has been accredited in Australia and North America for use in attempted repair of meniscal defects and tears rather than debridement.23

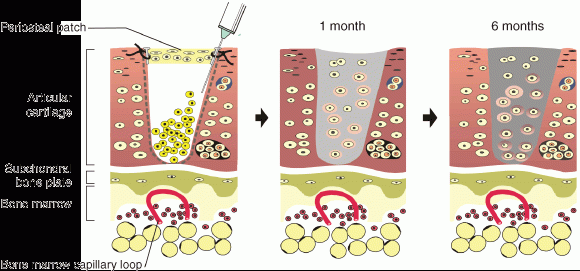

2: Illustration of autologous chondrocyte implantation (ACI) technology, based on Brittberg et al15

The articular cartilage defect is debrided (dashed line at margins of articular cartilage defect), which may kill adjacent chondrocytes down to the calcified layer of articular cartilage (white line at base of defect). A periosteal patch with the “cambium” layer of osteoprogenitor cells facing down into the defect is carefully sutured onto the top of defect (end to side) with about 1 mm interrupted 6/0 sutures and sealed with fibrin glue to ensure the chondral–periosteal compartment is “watertight”. Chondrocytes, which were retrieved at arthroscopy 3 weeks previously and proliferated at high density (1 × 10cells/mL in vitro), are then injected carefully into the “contained” defect at a cell density similar to that of the native cartilage from which the cells were intially obtained. These cells settle, adhere and proliferate, and also lay down new cartilage .
